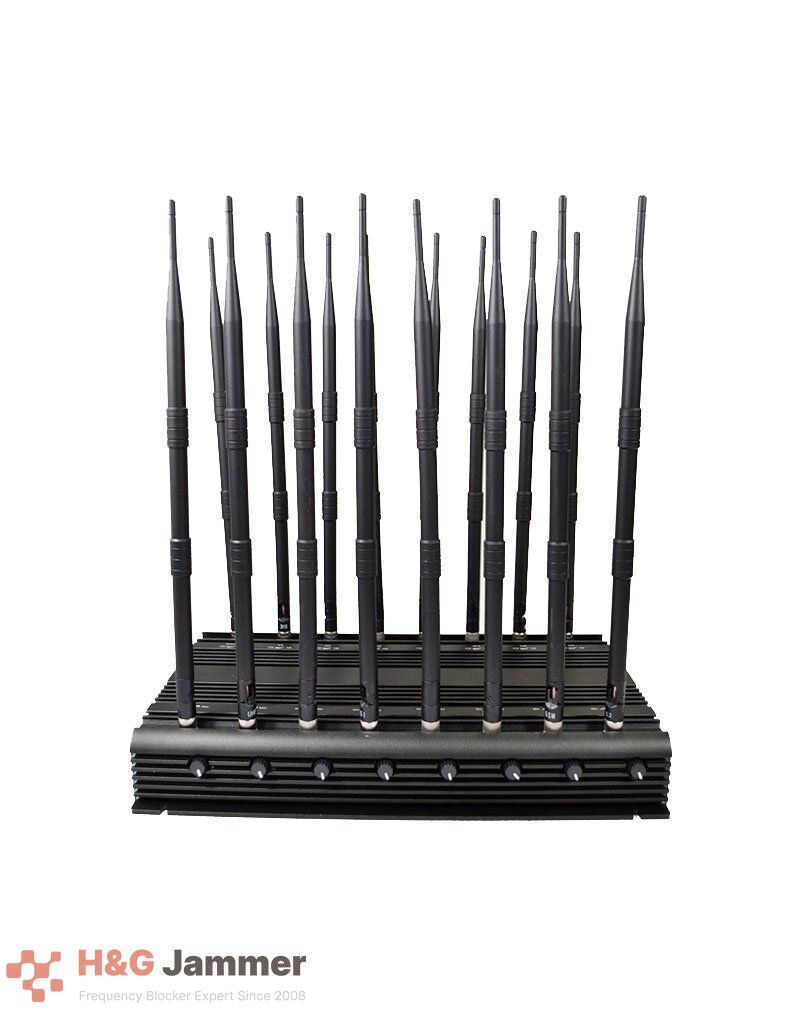

K302 16-Channel Desktop Jammer (40 meters)
$1,088.99
Options
K302 offers 2 options to choose from, each with different capabilities. Please choose carefully according to your need.
- k302-A: Mobile Phone 4G/3G/2G +WiFi2.4/5.8G+ GPSL1L2 + Walkie-Talkie & Wireless Headset/Microphone
- k302-B: Mobile Phone 4G/3G/2G +WiFi2.4G5.8G+ GPSL1L2 +Walkie-Talkie UHF/VHF+ Wireless Camera 1.2GHz
| Output Power: | Total 40W，1-3W each band |
| Range: | 40 meters |
| Power Supply: | AC110-240V to DC12V |
| Cooling System: |
Aluminum alloy radiator, Build-in 4 cooling fan
|
| Battery: | 10000mAh |
| Battery Life: | 120 minutes |
| Product Size: |
410x 238x 60 mm (without Antenna)
|
| Product Weight: | 6.5 Kg |
| Package Includes: |
Device x 1, AC adapter x 1,antenna x16,Car storage battery cable x1
|
Antenna Information
Specifications for Each Channels
The specifications provided for each channel are based on the item for the USA as a reference. As different countries operate on varying frequency ranges, we will fine-tune the frequency range according to your country before shipping to ensure the effectiveness of our products.
| K302-A | |||
| Channel | Output Port | Frequency Range |
Output power
|
| 1 | VHF | 130-190MHz | 35dbm / 3W |
| 2 | UHF or CDMA450 | 400-470 or 450-470MHz | 35dbm / 3W |
| 3 | RC315 | 315MHz | 35dbm / 3W |
| 4 | RC433 | 433MHz | 35dbm / 3W |
| 5 | 4G1 LTE 700 | 700-803 or 790-826MHz | 35dbm / 3W |
| 6 | 4G2 LTE 1700 | 1710-1780MHz | 33dbm / 2W |
| 7 | GSM or CDMA | 925-960 or 850-894MHz | 35dbm / 3W |
| 8 | DCS or PCS | 1805-1880-1920-1990MHz | 33dbm / 2W |
| 9 | 3G | 2110-2170MHz | 33dbm / 2W |
| 10 | 4G LTE 2600 | 2500-2690 MHz | 30dbm / 1W |
| 11 | Wi-Fi 2.4G+4G2300 | 2300-2500MHz | 30dbm / 1W |
| 12 | GPSL1 | 1570-1580MHz | 33dbm / 2W |
| 13 | GPSL2+L5 or Wireless Camera 1 | 1170-1280MHz | 33dbm / 2W |
| 14 | GPSL3+L4 or Wireless Camera 2 | 1280-1390MHz | 33dbm / 2W |
| 15 | Wireless Camera 3 | 1000-1170MHz | 33dbm / 2W |
| 16 | LOJACK& XM radio | 167-175MHz | 35dbm / 3W |
| K302-B | |||
| Channel | Output Port | Frequency Range |
Output Power
|
| 1 | VHF1 | 130-190MHz | 35dbm / 3W |
| 2 | UHF2 | 190-300MHz | 35dbm / 3W |
| 3 | UHF3 | 300-400MHz | 35dbm / 3W |
| 4 | UHF4 | 400-500MHz | 35dbm / 3W |
| 5 | 4G1 LTE 700 | 700-803 or 790-826MHz | 35dbm / 3W |
| 6 | 4G2 LTE 1700 | 1710-1780MHz | 33dbm / 2W |
| 7 | CDMA | 851-894MHz | 35dbm / 3W |
| 8 | GSM | 925-960MHz | 35dbm / 3W |
| 9 | DCS&PCS | 1805-1990MHz | 33dbm / 2W |
| 10 | 3G | 2110-2170MHz | 33dbm / 2W |
| 11 | 4G LTE 2600 | 2500-2690 MHz | 30dbm / 1W |
| 12 | Wi-Fi 2.4G+4G2300 | 2300-2500MHz | 30dbm / 1W |
| 13 | Wi-Fi 5.8G | 5725-5850MHz | 30dbm / 1W |
| 14 | GPSL1 | 1570-1580MHz | 33dbm / 2W |
| 15 | GPSL2+L5 | 1170-1280MHz | 33dbm / 2W |
| 16 | LOJACK& XM radio | 167-175MHz | 35dbm / 3W |
